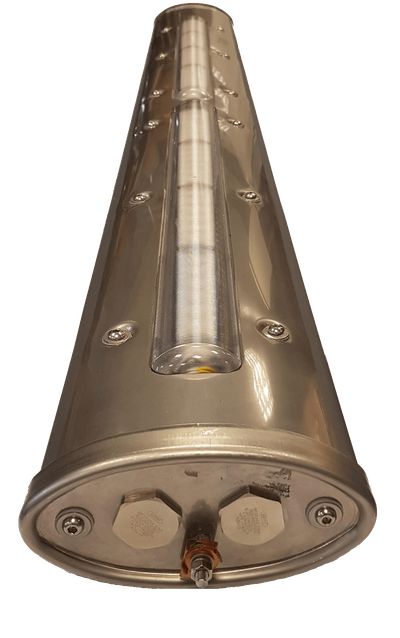

ALASTOR
Stainless steel linear - ATEX / IECEx certified
Features & Benefits
• Suitable for a wide variety of industrial applications
• Appropriate for ATEX Zones, 1/21 & 2/22
• Certified and rated to a number of classifications (see luminaire data sheet)
• Choice of 34w or 67w light output versions
• Easy retrofit solution for existing fluorescent fittings due to same size and fixing centres
• Resistant to shock and vibration
• Various mounting options
• Emergency version available
• 4000k (neutral white) or 5000k (cool white)
Applications
• Industrial areas with ATEX and explosive atmospheres
Example Installations
ALASTOR fittings are used in the following installations:
DECATHLON DISTRIBUTION CENTRE 🡆
General
- 708mm length x 170mm width (34W)
- 1308mm length x 170mm width (67W)
- Material of 316 marine grade stainless steel complete high impact resistant polycarbonate lens
- Suitable for ceiling and wall mounting
Optical
- Lumen output of 2600lm & 5100lm
- CRI >70Ra
- Circular light distribution
Electrical
- Wattage 36W & 67W
- Efficacy 76lm/w
- Voltage 110-250V AC, 50/60Hz (standard) 230-240V AC 50/60 Hz (emergency)
Durability
- Opertaing temp. -20° to +60°C
- IP66/67
- IK09
