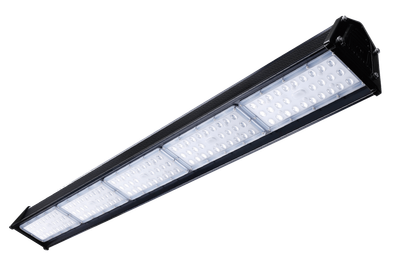

LINEAR HIGH BAY

LINEAR HIGH BAY

Multi-functional LED high bay luminaire

Features & Benefits

• High strength IK10 aluminium body
• Choice of lengths ranging from 286mm - 1186mm
• 120°, 60x90° or 30x70° beam angles
• Lumen output ranging from 6500lm - 31200lm
• Up to 130 lm/w
• 1-10V or DALI dimmable
• Optional sensors include motion or daylight

Applications

• Warehouse and industrial applications
• Bridge/tunnel lighting
• Petrol stations

Example Installations

LINEAR HB fittings are used in the following installations:

General

  • Lengths 284mm, 490mm, 722mm, 954mm & 1186mm
  • Powder coated black finish
  • Aluminium profile body and polycarbonate lens
  • Weight 2.5kg - 6.2kg

Optical

  • Lumen output 6500lm - 31,200lm
  • CCT of 4000k
  • CRI >80Ra
  • Beam angles of 120°, 60x90° and 30x70°

Electrical

  • Wattage 50W - 240W
  • Efficacy of 130lm/w
  • Voltage 100-277V
  • Frequency 50/60Hz
  • Inrush current
  • THD <20%
  • Class 1 protection

Durability

  • Operating temp. -30° to 50°C
  • IP66
  • IK10
