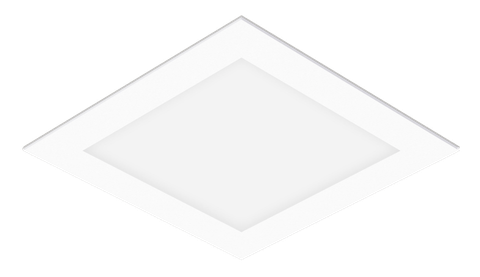

CLOACINA

Recessed LED light box

Features & Benefits

• Ultra-thin bezel designed to minimise visual impact
• IP54 high transmission acrylic diffuser
• Uniform light distribution
• 3000k or 4000k CCT
• Available as DALI or emergency variant

Applications

• Offices
• Reception areas
• Corridors

General

  • Size 244mm x 244mm bezel (220mm x 220mm cut-out)
  • Aluminium body with acrylic diffuser
  • Recess mounted
  • Weight 1.4kg

Optical

  • Lumen output of 475lm, 1025lm & 1375lm
  • 3000k or 4000k CCT
  • CRI >80Ra
  • SDCM <3
  • 90° beam angle
  • LOR  >68%

Electrical

  • Wattage 6W/10W/16W
  • Efficacy of up to 102lm/w
  • Voltage 220-240V

Durability

  • Lifespan >50000 hours (L80/F10)
  • Protection IP54
