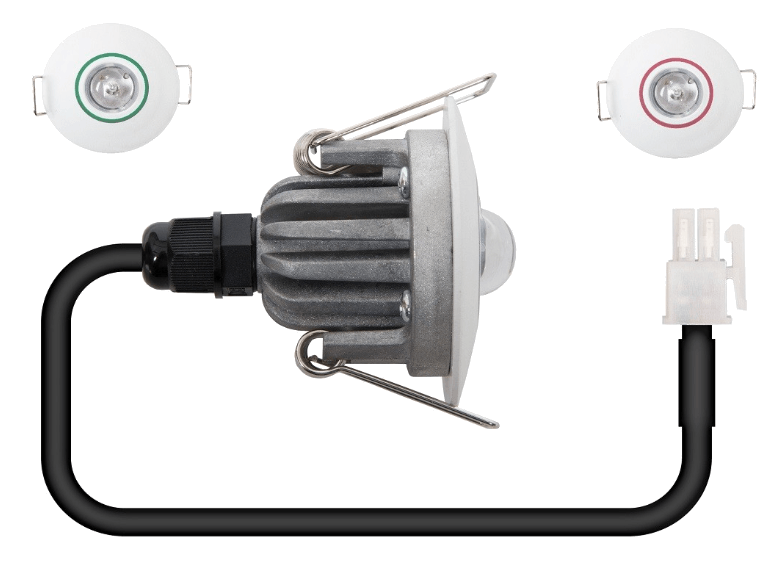

SELENE II & SELENE II DISCREET

SELENE II

Emergency LED luminaire

Features & Benefits

• 110° Open area or corridor optic
• Standard, Self-Test and DALI Self-Test options available
• High output of up to 207 delivered lumens
• Supplied with plugs and leads
• Requires 43mm cut-out
• Feaures bi-colour charge LED, green for healthy charge and red for fault indication of self-test functionality
• Discreet variant for bedrooms and ancillary areas where the green LED indicator Light is dimmed in low light levels and completely turned off in zero light conditions

Applications

• Interior/exterior applications requiring emergency lighting

General

  • 50mm diamter x 38.7mm depth
  • Cut-out of 43mm required
  • White, silver or black finish
  • Aluminium body
  • Recess mounting
  • 0.06kg

Optical

  • 207lm max. open area optic
  • 197lm max. corridor optic
  • CCT of 6000k
  • Beam angle of 110° (OA) 125° x 50° (CO)

Electrical

  • Input power of 3w
  • 4V DC Max.
  • Max. forward current 700mA
  • 3 hour operation
  • Ta max. 80° LED back plate

Durability

  • IP20
