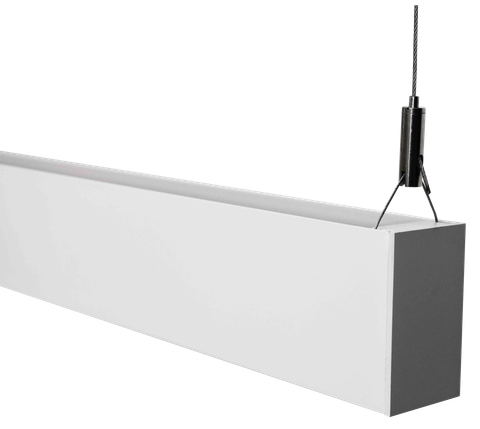

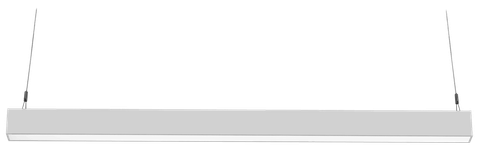

ENYO

Narrow profile linear LED lighting fixture with direct/indirect distribution

Features & Benefits

•    High light efficiency of more than 133 lm/w
•    Optimal glare control, UGR<19
•    Narrow 43mm profile width
•    Uniform illumination, direct and indirect light
•    Compact profile with refined surface finish
•    Compliance with EN12464-1 standard
•    Easy installation, no tools are required
•    Available as DALI, emergency variant and can be supplied with
motion/daylight sensor

Applications

•    Offices
•    Schools
•    Healthcare

General

  • Lengths of 1500mm, 1800mm
  • White, silver or black powder coated finish
  • Extruded aluminium profile with PMMA cover
  • Mounting via suspension cord or road, unit can also be track mounted

Optical

  • 3000lm to 5000lm  (direct distribution)
  • 1500lm+3000lm to 4000lm+4000lm (indirect distribution)
  • CCT of 3000k, 4000k, 5000k, tunable white
  • CRI >80Ra, >CRI90Ra
  • UGR <19
  • SDCM <3

Electrical

  • Input power of 23W - 38W (direct),    35W - 61W (indirect)
  • Up to 133lm/w
  • Voltage 200-240V
  • THD <15%

Durability

  • Lifetime of 60,000 hours (L90, Tc=55°C)
  • Operating temp. -35°C to 45°C
  • IP20
  • IK02
