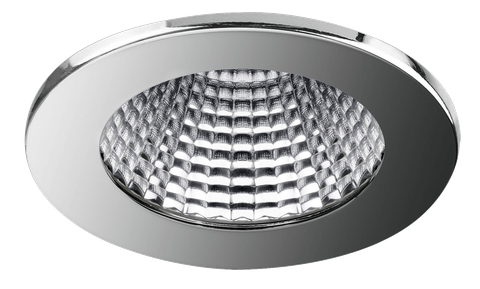

GORGON LARGE

Efficient and high output LED downlight

Features & Benefits

• Height under 100mm using optimised passive thermodynamics
• Die-cast twist and lock bezel with interchangeable accessories
• Multi-faceted 40° bright anodised aluminium reflector as standard
• Excellent luminaire efficacy of up to 133lm/w
• DALI, SwitchDIM and emergency versions are available
• Option of IP54 or IP65 bezels

Applications

• Offices
• Retail
• WC Areas
• Corridors
• Receptions

General

  • 130mm diamter x 99mm depth
  • White, black, brushed aluminium or chrome bezel finish
  • Aluminium bezel with toughened glass
  • Recess mounted
  • 0.5kg

Optical

  • Lumen output of 1025 - 3275lm
  • CCT of 3000k or 4000k
  • CRI >80Ra
  • SDCM 3
  • Choice of 25°, 40°, 50° or 60° beam angle

Electrical

  • 8W to 28W input power
  • Up to 133lm/w
  • 220V - 240V
  • 50-60Hz MF
  • 0.50 - 0.94 PF

Durability

  • Lifespan of >55,000 hours (L80/F10)
  • IP20 rated (IP54 & IP65 bezel optional)
  • Operating temp. -25°C to 35°C
