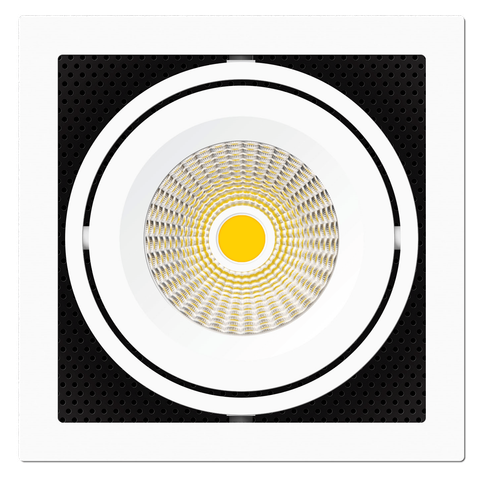

LENUS 1

Adjustable single LED frame light

Features & Benefits

• Fully adjustable single LED frame light
• Choice of single or twin (Lenus 2) variants
• Medium beam multi-faceted reflector as standard, other options available
• Two gimbal fixing positions
• DALI and 1-10V dimmable
• Available as emergency version

Applications

• Retail
• Offices
• Receptions
• Corridors

Example Installations

LENUS 1 fittings are used in the following installations:

General

  • 180mm x 180mm x 145mm
  • White RAL9016 & black RAL9005
  • Powder coated finish
  • Aluminium body and bezel
  • Recess mounted
  • 1.2kg

Optical

  • Lumen output 750lm to 3325lm
  • CCT of 3000k or 4000k
  • CRI >80Ra
  • LOR 84%
  • 25°, 40° 50° & 60° beam angles

Electrical

  • Input power of 7W to 30W
  • Up to 115lm/w
  • 220V - 240V
  • SDCM 3

Durability

  • Lifespan of 60,000 hours (L70/B10)
  • IP20
  • Operating temp. -25°C to 35°C
