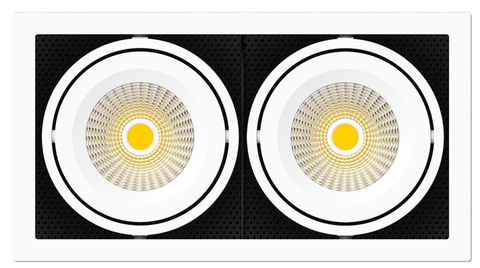

LENUS 2

Adjustable twin LED frame light

Features & Benefits

• Fully adjustable single LED frame light
• Choice of single (Lenus 1) or twin variants
• Medium beam multi-faceted reflector as standard, other options available
• Two gimbal fixing positions
• DALI and 1-10V dimmable
• Available as emergency version

Applications

• Retail
• Offices
• Receptions
• Corridors

Example Installations

LENUS 2 fittings are used in the following installations:

General

  • 348mm x 189mm x 145mm
  • White RAL9016 & black RAL9005
  • Powder coated finish
  • Aluminium body and bezel
  • Recess mounted
  • 1.7kg

Optical

  • Lumen output 1500lm to 6675lm
  • CCT of 3000k or 4000k
  • CRI >80Ra
  • LOR 84%
  • 25°, 40°, 50° or 60° beam angle

Electrical

  • Input power of 14W to 59W
  • Up to 115lm/w
  • 220V - 240V
  • SDCM 3

Durability

  • Lifespan of 60,000 hours (L70/B10)
  • IP20
  • Operating temp. -25°C to 35°C
