APOLLO

APOLLO

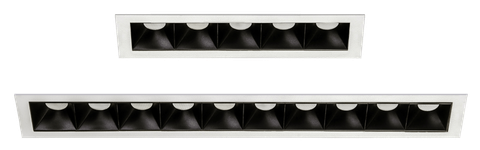

High quality mini linear downlight

Features & Benefits

• IP44 luminaire
• Up to 94lm/w
• Wide variety of options available
• Low glare baffle
• Choice of 4 beam angles
• Slim line bezel
• Extruded aluminium super fin heat sink
• Long life of 60,000 hours
• Adjustable version available upon request

Applications

• Offices
• Retail
• Hotels
• Receptions

General

  • Size 175mm (5x) x 50mm, 330mm (10x) x 50mm
  • Aluminium body with powder coated finish
  • Recess mounted
  • Weights of 0.4kg (175mm) 0.7kg (330mm)

Optical

  • Up to 1075lm @175mm & 2150lm @330mm
  • 3000k or 4000k CCT
  • CRI >80Ra (90 optional)
  • UGR of <14.7
  • Beam angles of 10°, 15°, 30° & 50°

Electrical

  • Wattage of 7W/13W @175mm & 13W/23W @ 330mm
  • Efficacy of up to 94lm/w
  • Voltage 220-240V
  • THD <20%
  • PF 0.9

Durability

  • Lifespan 60000 hours (L80/F50)
  • Protection IP44 (front) IP20 (rear)
