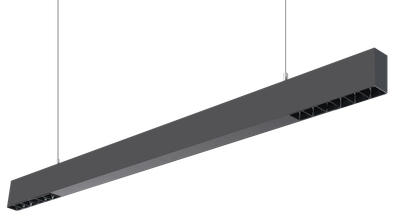

CHIMERA DARK LIGHT

Suspended linear light

Features & Benefits

• Manufactured aluminium with black finish as standard
• Choice of 3 different beam angles
• Lumen output of up to 4000lm
• 3000k, 4000k & 5000k CCT
• Control options include PIR, motion, daylight sensor and dimming capabilities
• Available as standard, DALI, and emergency version

Applications

• Offices
• Retail
• Reception Areas

General

  • Lengths of 600mm, 900mm, 1200mm & 1500mm
  • Finished black as standard
  • Aluminium body
  • Suspended mounting

Optical

  • Lumen outputs of 1600lm - 4000lm
  • CCT 3000k, 4000k & 5000k
  • CRI >80Ra
  • UGR <10
  • Beam angles of 15°, 30° & 45°

Electrical

  • Wattage 20w - 50w
  • Efficacy up to 80lm/w
  • Voltage 220-240V
  • SDCM 3

Durability

  • Operating Temp. -25°C to 35°C
  • IP20
